HAVACO ICM-EC-100/366M
Code: ICM-EC-100/366MRelated products
Product detailed description
The HAVACO ICM-EC-100/366M diagonal duct fan is suitable for both air supply and extraction in residential buildings, public service buildings, offices and shops. The fan for circular ductwork HAVACO ICM-EC-100/366M is an excellent choice for extracting air from rooms with high humidity . The design of the HAVACO ICM-EC-100/366M duct fan enables a high air flow rate to be achieved with low pressure drop and low electricity consumption.
The HAVACO ICM-EC-100/366M duct fan is made of polypropylene, whilst the impeller is made of ABS plastic. It can be installed in either a horizontal or vertical position. The HAVACO ICM duct fan for circular ducts is fitted with ball bearings. IP44 protection rating.

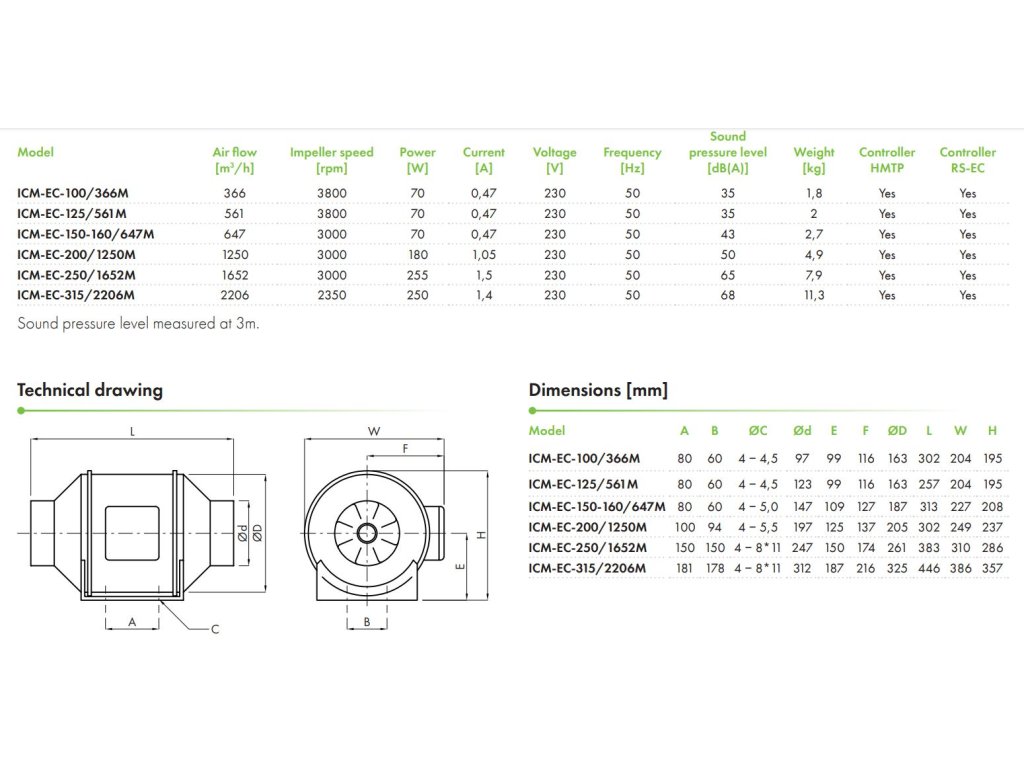

Additional parameters
| Category: | HAVACO ICM-EC - diagonal duct fans with EC motor |
|---|---|
| Warranty: | 2 years |
| Weight: | 1.8 kg |
| Voltage [V]: | 230 |
| IP protection: | IP44 |
| Variant: | EC motor |
| Maximum temperature [°C]: | 60 |
| RPM [min-1]: | 3800 |
| Current [A]: | 0,47 |
| Duct diameter [mm]: | 100 |
| Airflow rates [m3/h]: | 366 |
| Input power [W]: | 70 |
| Typ motoru: | EC |
| Noise level [dB(A)]: | 35 |
