Systemair KVK 160 L
Code: SA2434Product detailed description
The Systemair KVK 160 L sound-insulated centrifugal fan for circular air ducts can be used for air supply or extraction in various commercial applications. The Systemair KVK 160 L centrifugal fan is fitted with an impeller featuring backward-curved blades. It can be installed in any position. The radial impeller and motor of the Systemair KVK 160 L fan are designed to ensure high performance with minimum power consumption and maximum efficiency.
- 50 mm thick soundproofing
- low noise levels
- service cover for easy maintenance
- installation in any position
- 50 mm thick sound insulation
- low noise level
- service cover for easy maintenance
- can be installed in any position
Description
The Systemair KVK fan can be used for air supply or extraction where quiet operation is a priority. This makes the fan suitable for a variety of commercial and domestic applications.
Design
The Systemair KVK fan is fitted with an impeller featuring backward-curved blades. The fan motor is mounted on a hinged plate for easy maintenance and cleaning. The fan, designed for circular ventilation ducts, is thermally and acoustically insulated with a 50 mm layer of mineral wool.
Installation
The Systemair KVK fan can be installed in any position. Outdoor installation is only possible with a protective cover.
Thermal protection and speed control

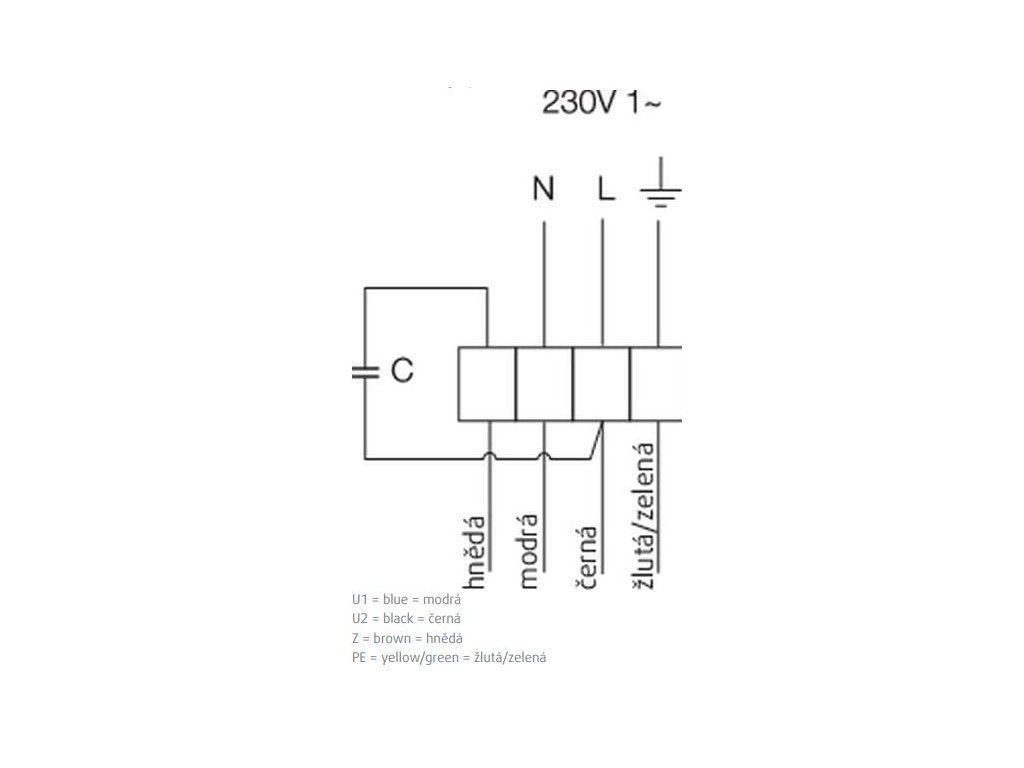

The fan is fitted with a motor featuring integrated thermal contacts connected to the terminal block, which must be connected to the appropriate thermal protection relay. The fan speed can be controlled using a frequency converter with a sine filter, a thyristor or a 5-step transformer.
Additional parameters
| Category: | Systemair KVK – insulated centrifugal fans for circular ducts |
|---|---|
| Warranty: | 2 years |
| Weight: | 11.7 kg |
| Voltage [V]: | 230 |
| IP protection: | IP44 |
| Maximum temperature [°C]: | 70 |
| RPM [min-1]: | 2519 |
| Current [A]: | 0,59 |
| Duct diameter [mm]: | 160 |

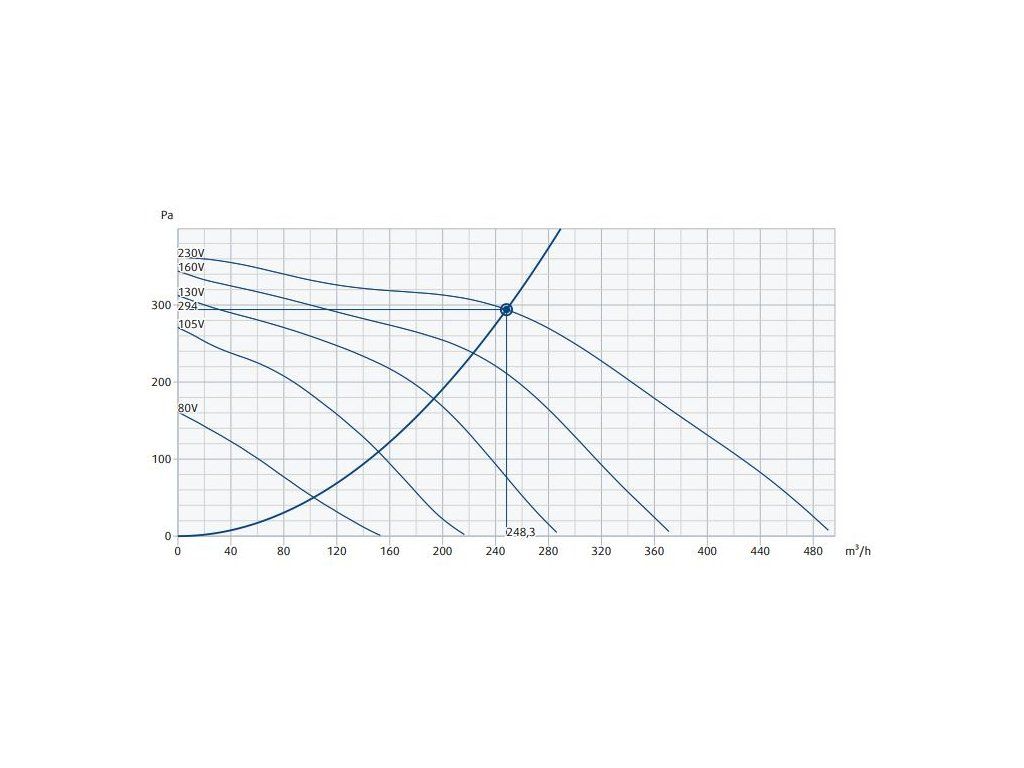

| Airflow rates [m3/h]: | 497 |
| Input power [W]: | 134 |
| Typ motoru: | AC |
| Noise level [dB(A)]: | 39 |
