Rosenberg R 160L.3CA
Code: F00-16001Related products
Product detailed description

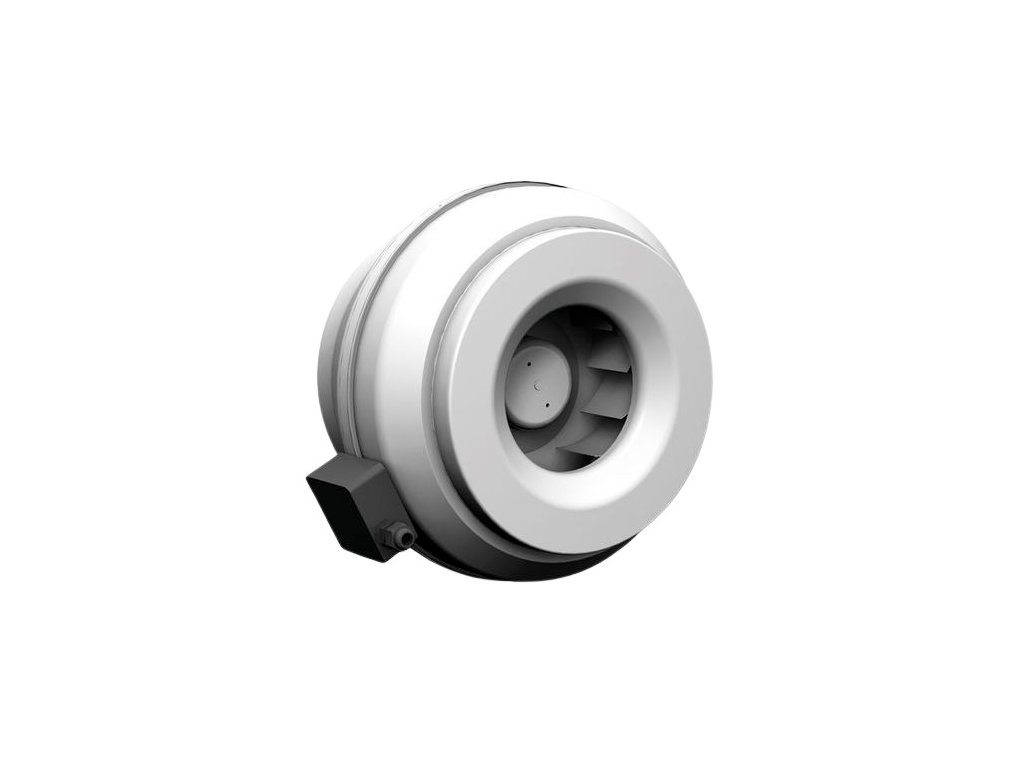

The Rosenberg R 160L.3CA circular duct fan is suitable for ventilation in residential buildings, warehouses, production halls, etc. The Rosenberg R 160L.3CA circular duct fan features a compact design intended for installation in duct systems and is intended for indoor use. The housing of the Rosenberg R 160L.3CA fan is made of galvanized steel sheet with an integrated terminal block and an IP54 protection rating.
The Rosenberg R 160L.3CA circular duct fan is equipped with a highly efficient impeller with backward-curved blades. The impeller is made of plastic. Speed control of the Rosenberg R 160L.3CA fan for circular ductwork is performed by a voltage controller. Installation is possible in any position.
• motor speed is voltage-controlled (0-10V signal)
• for connection to circular ducting: 160 mm
• impeller with backward-curved blades
• housing made of galvanized steel sheet
• low noise level
• suitable for installation in any position
Additional parameters
| Category: | Rosenberg R - circular duct fan |
|---|---|
| Warranty: | 2 years |
| Weight: | 3.1 kg |
| Voltage [V]: | 230 |
| IP protection: | IP44 |
| Maximum temperature [°C]: | 70 |
| RPM [min-1]: | 2415 |
| Current [A]: | 0,41 |
| Duct diameter [mm]: | 160 |
| Airflow rates [m3/h]: | 848 |
| Input power [W]: | 94 |
| Typ motoru: | AC |
| Noise level [dB(A)]: | 61 |
