Rosenberg R 125 G.2BK
Code: F02-12502Related products
Product detailed description
The Rosenberg R 125 G.2BK circular duct fan is suitable for ventilation in residential buildings, warehouses, production halls, etc. The Rosenberg R 125 G.2BK circular duct fan features a compact design intended for installation in duct systems and is intended for indoor use. The housing of the Rosenberg R 125 G.2BK fan is made of galvanized steel sheet with an integrated terminal block and an IP54 protection rating.
The Rosenberg R 125 G.2BK circular duct fan is equipped with a highly efficient impeller featuring backward-curved blades. The impeller is made of plastic. Speed control of the Rosenberg R 125 G.2BK duct fan for circular ducts is performed by a voltage controller. Installation is possible in any position.
The Rosenberg R 125 G.2BK duct fan is driven by a highly efficient and energy-saving EC motor with an external rotor located inside the radial impeller.

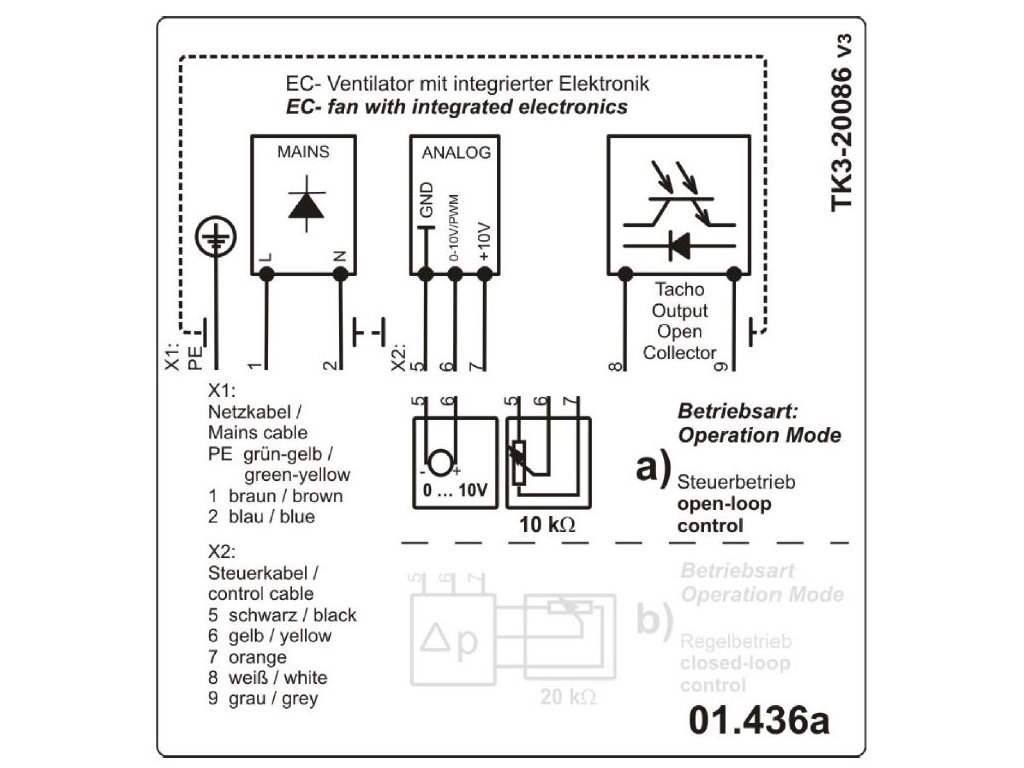

• Motor speed is voltage-controlled (0-10V signal)
• For connecting circular ducts: 125 mm
• Impeller with backward-curved blades
• Housing made of galvanized steel sheet
• Low noise level
• Suitable for installation in any position
Additional parameters
| Category: | Rosenberg R - circular duct fan |
|---|---|
| Warranty: | 2 years |
| Weight: | 2.3 kg |
| Voltage [V]: | 230 |
| IP protection: | IP54 |
| Maximum temperature [°C]: | 60 |
| RPM [min-1]: | 3690 |
| Current [A]: | 0,75 |
| Duct diameter [mm]: | 125 |
| Airflow rates [m3/h]: | 624 |
| Input power [W]: | 89 |
| Typ motoru: | EC |
| Noise level [dB(A)]: | 72 |
