HAVACO ICMsilent-200/840M
Code: ICM-200/840MRelated products
Product detailed description
The HAVACO ICMsilent-200/840M diagonal duct fan is suitable for both air supply and extraction in residential buildings, public service buildings, offices and shops. The HAVACO ICMsilent-200/840M fan for circular ducting is an excellent choice for extracting air from rooms with high humidity . The HAVACO ICMsilent-200/840M design of the duct fan enables a high air flow rate to be achieved whilst maintaining very low noise levels.
The HAVACO ICMsilent-200/840M duct fan is made of polypropylene, whilst the impeller is made of ABS plastic. It can be installed in either a horizontal or vertical position. The HAVACO ICM duct fan for circular ducts is fitted with ball bearings. IP44 protection rating. The maximum temperature of the air being conveyed is +60 °C.

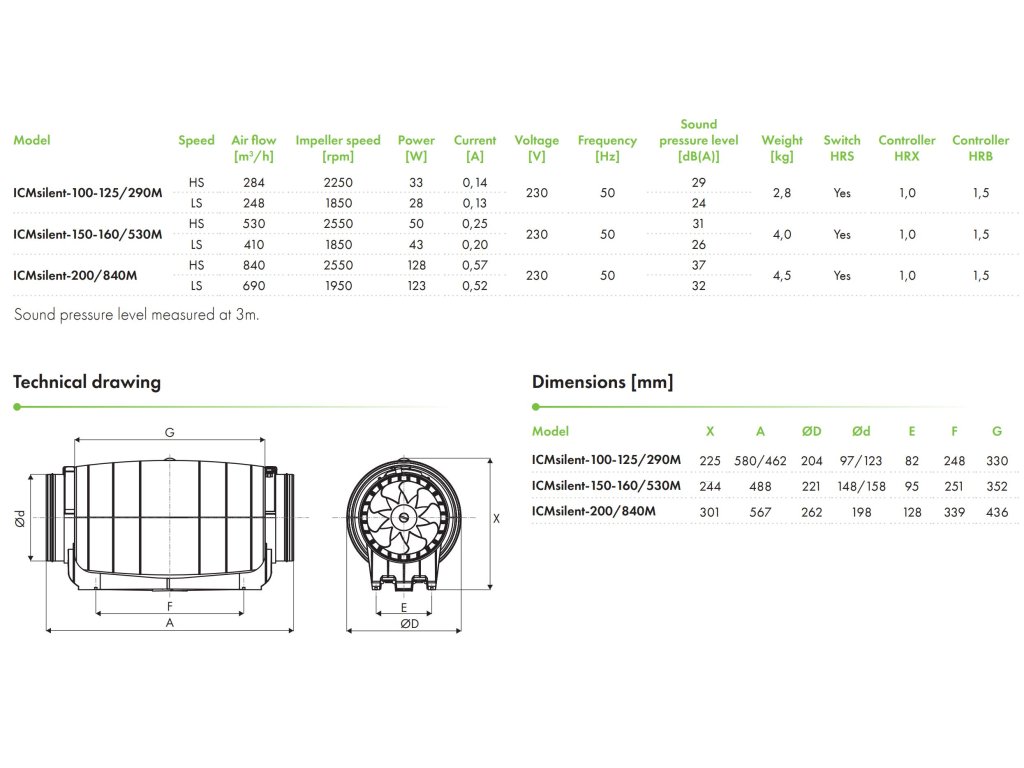

Additional parameters
| Category: | HAVACO ICM silent – silent diagonal duct fans |
|---|---|
| Warranty: | 2 years |
| Weight: | 4.5 kg |
| Voltage [V]: | 230 |
| IP protection: | IP44 |
| Variant: | 2-speed, Silent |
| Maximum temperature [°C]: | 60 |
| RPM [min-1]: | 2550 / 1950 |
| Current [A]: | 0,57 / 0,52 |
| Duct diameter [mm]: | 200 |
| Airflow rates [m3/h]: | 840 / 690 |
| Input power [W]: | 128 / 123 |
| Typ motoru: | AC |
| Noise level [dB(A)]: | 37 / 32 |
| Otáčky [min-1]: | 2400/2220 |
| Napětí [V]: | 230 |
| Příkon [W]: | 29/18 |
| Průtok [m3/h]: | 180/160 |
| Teplota [°C]: | -20 až +40 |
| Akustický tlak [dB(A)]: | 24/21 |
| Proud [A]: | 0,17/0,11 |
| Krytí: | IP44 |
| Regulátor: | REB 1, REV 1,5 |
