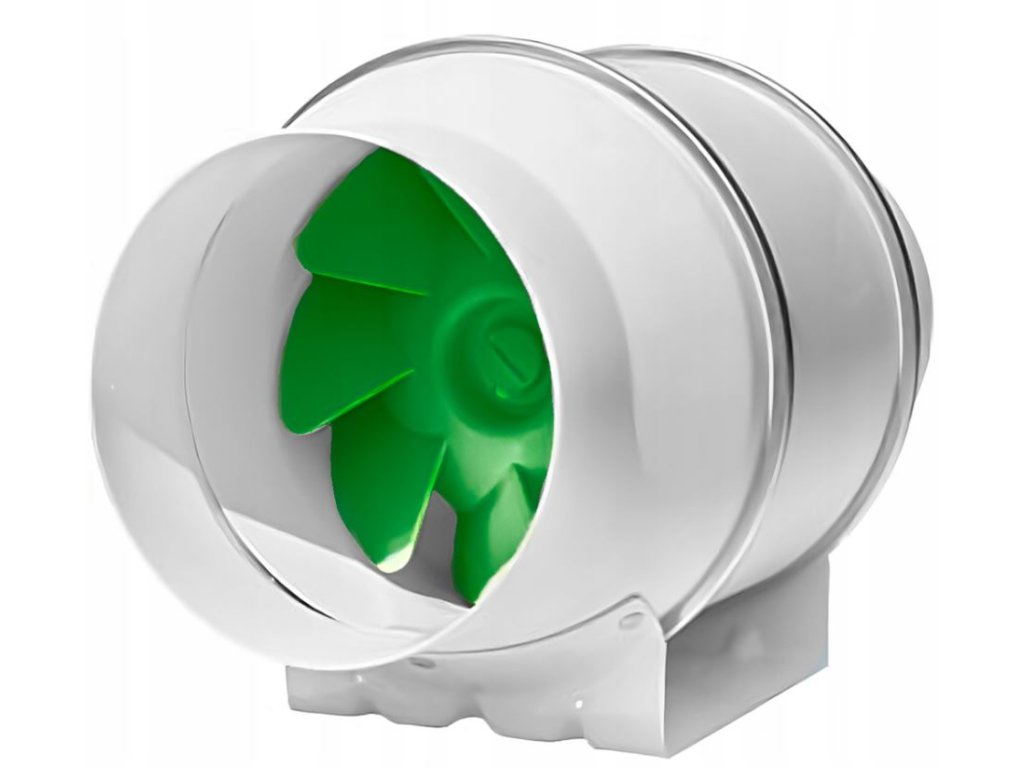

HAVACO ICM-100/200M
Code: H100/200MRelated products
Product detailed description
The HAVACO ICM-100/200M diagonal duct fan is suitable for both air supply and extraction in residential buildings, public service buildings, offices and shops. The HAVACO ICM-100/200M fan for circular ductwork is an excellent choice for extracting air from rooms with high humidity . The design of the HAVACO ICM-100/200M duct fan enables a high air flow rate to be achieved with low pressure loss and low electricity consumption.
The HAVACO ICM-100/200M duct fan is made of polypropylene, whilst the impeller is made of ABS plastic. It can be installed in either a horizontal or vertical position. The HAVACO ICM duct fan for circular ducts is fitted with ball bearings. IP44 protection rating.
Additional parameters
| Category: | HAVACO ICM - powerful diagonal duct fans |
|---|---|
| Warranty: | 2 years |
| Weight: | 2 kg |
| Voltage [V]: | 230 |
| IP protection: | IP44 |
| Variant: | 2-speed, Silent |
| Maximum temperature [°C]: | 60 |
| RPM [min-1]: | 2200 / 1850 |
| Current [A]: | 0,12 / 0,11 |
| Duct diameter [mm]: | 100 |
| Airflow rates [m3/h]: | 198 / 165 |
| Input power [W]: | 26 / 23 |
| Typ motoru: | AC |
| Noise level [dB(A)]: | 31 / 26 |
