A fan heater is an electrical device used to heat a given space or ensure thermal comfort in a building. There are many different types of fan heater units designed for heating industrial buildings (production halls, warehouses, depots) or commercial buildings (hospitals, hotels, entrance halls, etc.).
What types of fan heaters do we supply?
The category of fan heaters includes heating units with various heat sources designed primarily for industrial buildings. Depending on the heat source available, we can choose between hot water, hot air, steam, electric, or gas hot air heating units. However, we can also offer heating unit solutions for potentially explosive atmospheres - ATEX EX II 2G IIB T4/T3.
MultiMaxx HN fan heaters with water exchanger
Heating, cooling, and ventilation units are used for heating, cooling, ventilation, or air filtration and are installed in industrial, storage, sales, or exhibition spaces. Filters, mixing chambers, air intake elements, hangers, and control boxes with appropriate sensors, such as room thermostats and industrial thermostats, are available as accessories. The heating units are designed for spaces with a temperature of +40 °C.
What types of fans can I choose from?
Fan with curved blades
Axial fan with an external rotor motor and built-in protective grille, designed for increased pressure and noise requirements. Pressure stable even in applications with air mixing, filtration, or for greater required ranges/suspension heights. The optimized suction nozzle significantly reduces noise parameters. The impeller with curved blades is made of aluminum casting, balanced at the manufacturing plant, and requires no maintenance.
IP54 protection, temperature class F, thermocontact connected to the terminal block, AC motors in two variants 3x400V and one variant 3x500V, EC motors in one variant 1x230V and one variant 3x400V.
HN##.######.R## - 3x 400V - 2-speed AC motor, higher speed
HN##.######.S## - 3x 400V - 3-speed AC motor
HN##.######. V## - 3x 500V - 3-speed AC motor
HN##.######.Y## - 1x 230V continuous EC motor
HN##.######.Z## - 3x 400V continuous EC motor
Fan with wide blades
Standard axial fan with external rotor motor with built-in protective grille. The heating unit with wide blade fan is designed for normal pressure and noise requirements. The impeller is equipped with aluminum wide blades, which are balanced at the factory. Maintenance-free.
IP54 protection, temperature class F, thermal contact connected to the terminal block, AC motors in three variants 3x 400V and two variants 1x 230V.
HN##.######. A## - 3x 400V - 2-speed AC motor, lower speed
HN##.######. B## - 3x 400V - 2-speed AC motor, higher speed
HN##.######.C## - 3x 400V - 3-speed AC motor
HN##.######. D## - 1x 230V - 1-speed AC motor, lower speed
HN##.######.E## - 1x 230V - 1-speed AC motor, higher speed
What types of water exchangers can I choose from?
Cu/Cu exchanger - heating water - PWW or cooling water PKW
High-performance exchanger for heating with heating water or cooling with cooling water in medium and high air pollution. Improved heat transfer from the pipe to the fins is achieved even with a larger fin spacing thanks to the optimal use of the exchanger surface. The exchanger is made of copper pipes with profiled copper fins, fin spacing 3.0 mm with 1, 2, 3 or 4 rows of pipes. The Cu/Cu exchanger is suitable for connecting the medium from the right or left.
Designation: MultiMaxx HN##.##C###.###
- Maximum operating temperature: 130 °C
- Maximum operating pressure: 1.6 MPa (16 bar)
Cu/Al exchanger - heating water - PWW or cooling water PKW
Standard exchanger for heating with heating water or cooling with cooling water in low air pollution conditions. The exchanger is made of copper pipes with profiled aluminum fins, fin spacing 2.5 mm, with 1, 2, 3, or 4 rows of pipes. The Cu/Al exchanger is suitable for connecting the medium from the right or left.
- Maximum operating temperature: 130 °C
- Maximum operating pressure: 1.6 MPa (16 bar)
Designation:
MultiMaxx HN##.##A###.###
Fe/Fe Zn exchanger - heating water - PHW
High-performance industrial exchanger for hot water heating, suitable for environments with maximum air pollution. The exchanger has a robust design, consisting of elliptical steel finned tubes (S, T) or round tubes (R). The entire exchanger is hot-dip galvanized, which ensures high-quality heat transfer between the tube and fins as well as high-quality corrosion protection. Steel exchangers are designed for PHW heating water and have media connections from the top, right, or left.
- maximum operating temperature: 160 °C
- maximum operating pressure 1 RR: 1.6 MPa (16 bar)
- maximum operating pressure 2 RR: 1.0 MPa (10 bar)
Designation:
MultiMaxx HN##.##R###.### - exchanger with circular tubes
MultiMaxx HN##.##S###.### - exchanger with elliptical tubes
MultiMaxx HN##.##T###.### - exchanger with elliptical tubes
Fe/Fe heat exchanger - steam
High-performance heat exchanger for steam heating in environments with maximum air pollution. The exchanger has a robust construction made of steel circular finned tubes. The entire exchanger is hot-dip galvanized, which ensures high-quality heat transfer between the pipe and fins as well as high-quality corrosion protection. Steel exchangers designed for steam are suitable for connecting the medium from above (condensate drainage is provided at the bottom).
- Maximum operating temperature: 180 °C
- Maximum operating pressure 1 RR: 0.8 MPa (8 bar) - (0.5 MPa - 158 °C)
- Maximum operating pressure 2 RR: 0.8 MPa (only for R)
Designation:
MultiMaxx HN##.##R###.###
MultiMaxx HN##.##S###.###
MultiMaxx HN##.##T###.###
Cooling with condensate drain or condensate pump
The MultiMaxx HN units can be used in cooling mode in addition to heating. The Cu/Al or Cu/Cu exchanger can be operated with cooling water or a mixture of water and glycol. Units equipped with a 3-row or 4-row exchanger and a lower speed motor fan are used for cooling. Thanks to the lower air speed, condensate is reliably drained into the condensation tray.
MultiMaxx HE electric heating units
MultiMaxx HE electric heating units are used for heating, ventilation, or air filtration and are designed for installation in industrial, storage, sales, and exhibition spaces for operation at temperatures from -5 °C to +40 °C. The protection rating is IP42.
Fans with curved blades (V)
The axial fan with an external rotor motor and integrated protective grille is designed for increased pressure and noise requirements. Pressure stable even in applications with air mixing, filtration or for greater required ranges/suspension heights. The optimized suction nozzle significantly reduces noise parameters. The impeller with curved blades is made of cast aluminum, factory-balanced, and maintenance-free.
IP54 protection, temperature class F, thermocontact connected to the terminal block, in one variant 500V/50Hz.
- Intake air temperature: -20 °C to +40 °C
Designation:
MultiMaxx HE2#.######.V## - 3 ~ 500 V, 3-speed
Fan with wide blades (A, B)
Standard axial fan with external rotor motor and support cage with integrated protective grille against contact, designed for normal pressure and noise requirements. The impeller with wide aluminum blades is factory-balanced and maintenance-free.
IP54 protection, temperature class F, thermal contact connected to the terminal block, in two variants 400V/50Hz.
- Intake air temperature: -20 °C to +40 °C
Designation:
MultiMaxx HE##.######. A## - V = 3 ~ 400 V, 2-speed - lower speed combination
MultiMaxx HE##.######.B## - V = 3 ~ 400 V, 2-speed - higher speed combination
Heating battery
The heating battery consists of stainless steel heating rods assembled into three separate sections. These sections are connected to a terminal block, which connects the battery to the power supply (400V / 50Hz or 500V / 50Hz). Automatic and manual fuses are provided to protect against overheating. The heating battery is mounted in a compact galvanized steel enclosure.
Designation:
MultiMaxx HE##.##F###.### - V = 3 ~ 400 V, 2-speed - lower speed combination

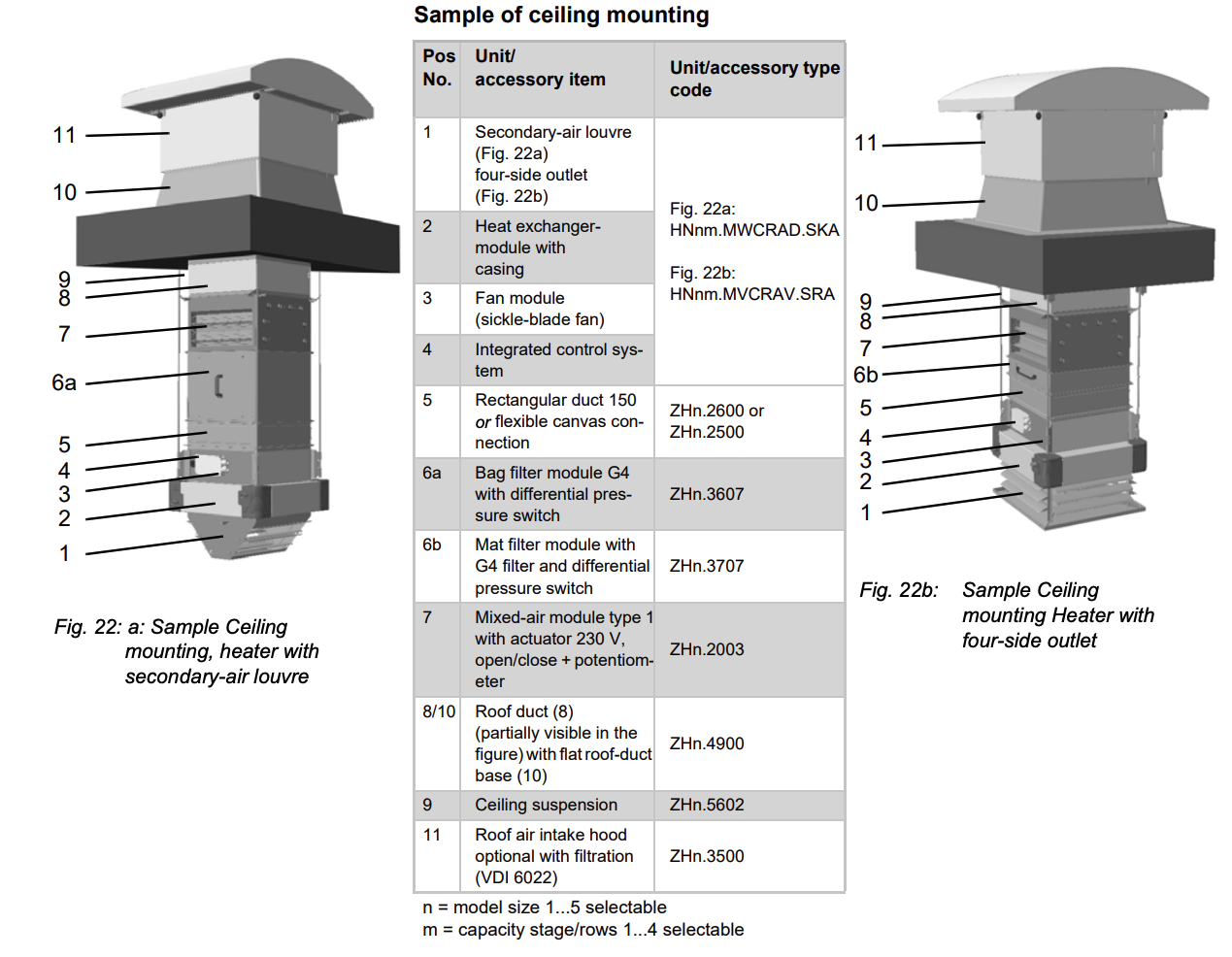

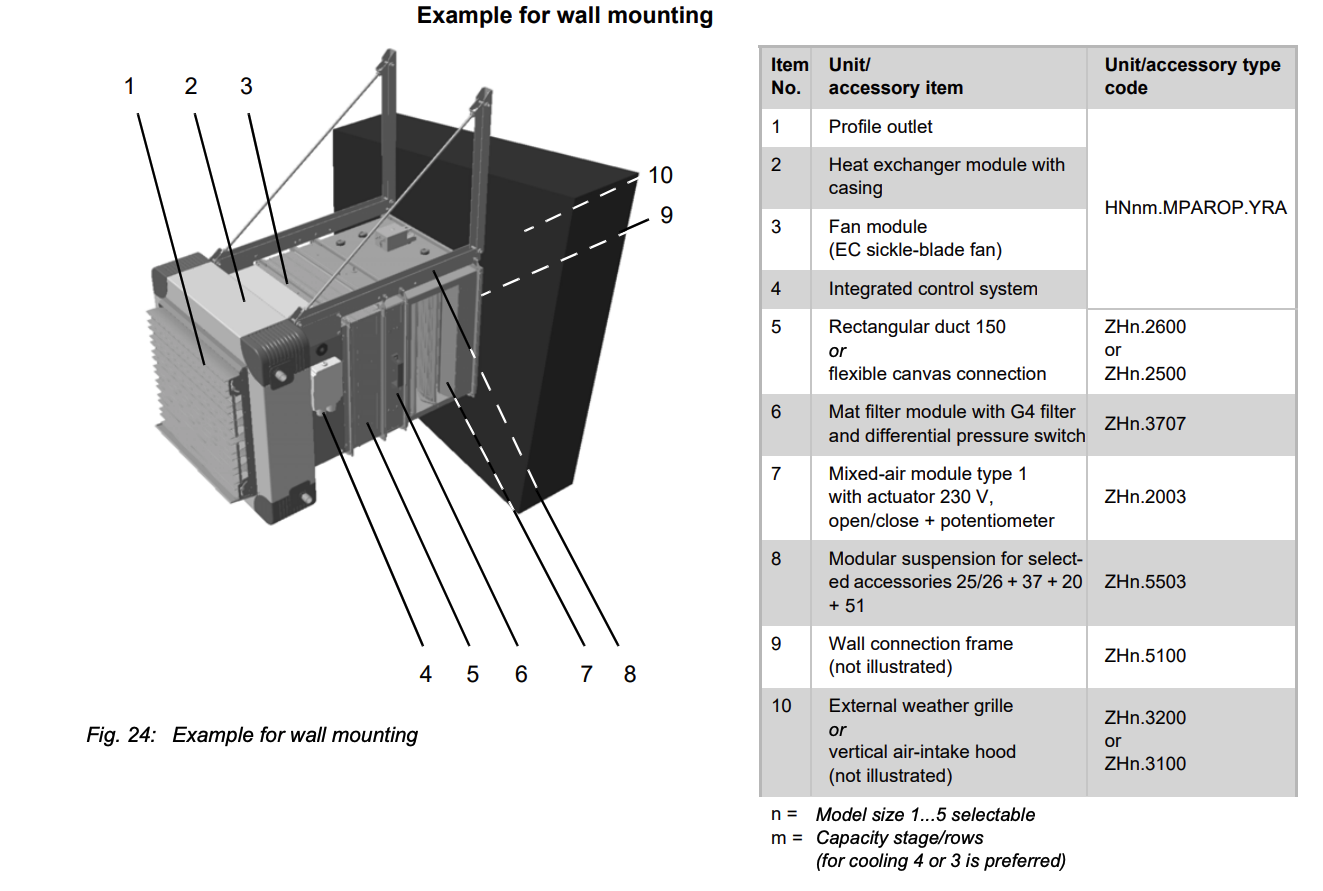

Installation examples:
