EM 280 E2M 01
Code: RC130471Related products
Product detailed description

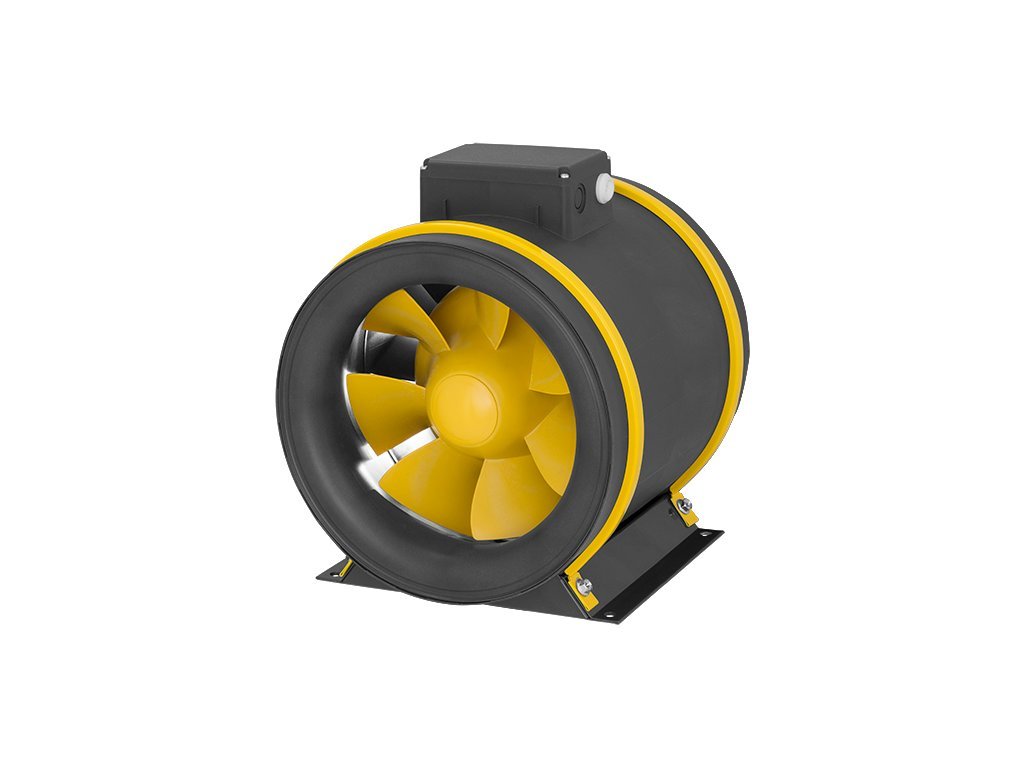

The EM 280 E2M 01 circular duct fan is a silent diagonal fan made of high quality plastic. Thanks to its three-dimensional blade design, the EM 280 E2M 01 achieves one of the highest efficiencies in its class of duct fans. The EM 280 E2M 01 circular duct fan has IP44 humidity protection. The EM 280 E2M 01 fan can be mounted in any position.
The EM 280 E2M 01 diagonal duct fan is equipped with AC motor, overheating protection with automatic restart. Robust EM 280 E2M 01 fan motor with humidity protection and ball bearings. The fan located at the end of the HVAC ductwork must have a free suction or discharge side equipped with a protective grille for protection against contact. The EM 280 E2M 01 duct fan can be voltage controlled.
Additional parameters
| Category: | RUCK Etamaster AC / Etamaster EC - circular duct fans |
|---|---|
| Warranty: | 2 years |
| Weight: | 5.8 kg |
| EAN: | 4061199016841 |
| Voltage [V]: | 230 |
| IP protection: | IP44 |
| Current [A]: | 1,1 |
| Duct diameter [mm]: | 280 |
| Airflow rates [m3/h]: | 1620 |
| Input power [W]: | 239 |
| Typ motoru: | AC |
| Noise level [dB(A)]: | 63 |
| Max. průtok [m³/h]: | 1620 |
| Příkon [W]: | 239 |
| Proud [A]: | 1,1 |
| Akust. tlak [dB(A)]: | 63 |
| Max. teplota [°C]: | 60 |
