EM 200 EC 01
Code: RC130561Related products
Product detailed description

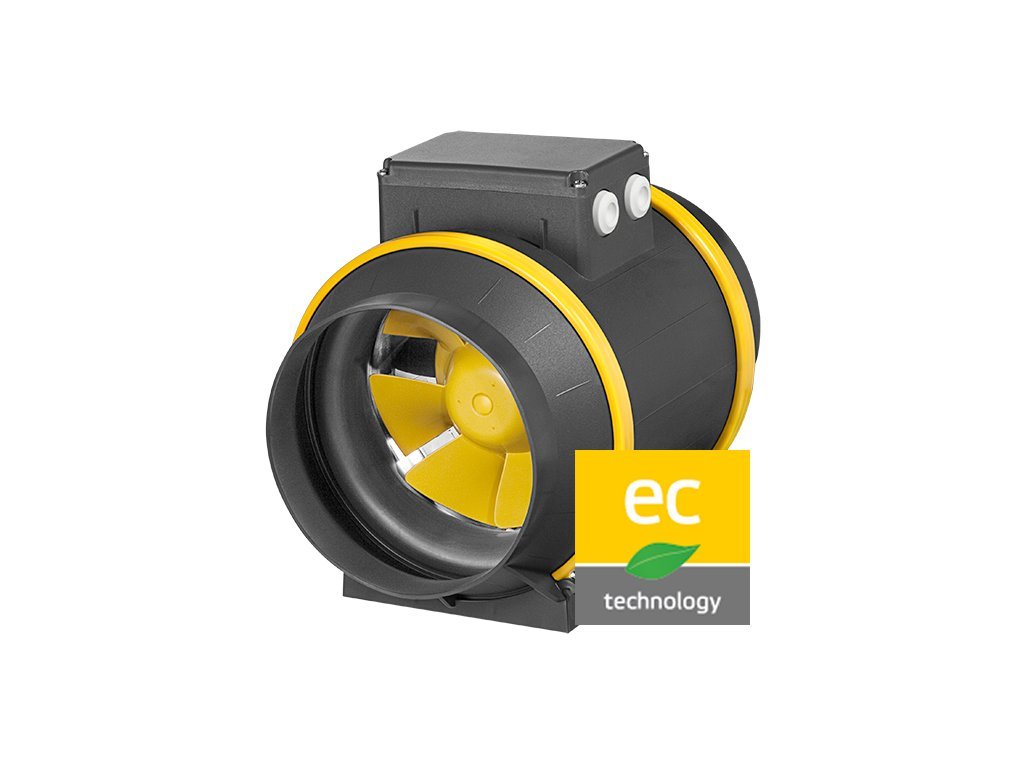

The EM 200 EC 01 circular duct fan with energy saving EC motor is a silent diagonal fan made of high quality plastic. Thanks to its three-dimensional blade design, the EM 200 EC 01 achieves one of the highest efficiencies in its class of duct fans. The EM 200 EC 01 circular duct fan has a humidity protection rating of IP44. The EM 200 EC 01 fan can be mounted in any position.
The EM 200 EC 01 diagonal duct fan is equipped with a EC motor with very low power consumption, overheating protection. Robust EM 200 EC 01 fan motor with humidity protection and ball bearings. A fan located at the end of an HVAC duct route must have a free suction or discharge side equipped with a protective grille to protect against contact. The direction of flow and rotation is indicated by arrows on the fan housing. The speed of the EM 200 EC 01 duct fan can be continuously controlled.
Additional parameters
| Category: | RUCK Etamaster AC / Etamaster EC - circular duct fans |
|---|---|
| Warranty: | 2 years |
| Weight: | 3.2 kg |
| EAN: | 4061199016995 |
| Voltage [V]: | 230 |
| IP protection: | IP44 |
| Variant: | EC motor |
| Current [A]: | 1 |
| Duct diameter [mm]: | 200 |
| Airflow rates [m3/h]: | 1300 |
| Input power [W]: | 121 |
| Tepelná třída: | F |
| Typ motoru: | EC |
| Noise level [dB(A)]: | 56 |
| Max. průtok [m³/h]: | 1300 |
| Příkon [W]: | 121 |
| Proud [A]: | 1 |
| Akust. tlak [dB(A)]: | 56 |
| Max. teplota [°C]: | 45 |
