CATA e120 GBTH
Code: 00901602
Product detailed description
Compact axial bathroom fan Cata e120 GBTH with elegant black glass front panel.The compact and quiet Cata e120 GBTH fan features two-speed operation, an adjustable run-on timer (3 to 15 minutes), and a humidity sensor with an adjustable range from 40% to 95%. It is suitable for continuous ventilation, including micro-ventilation. The fan operates at an extremely low noise level of only 10 dB, making it virtually inaudible during use. The Cata e120 GBTH fan is designed for bathrooms and toilets. It can be installed on walls or ceilings.
Application
The quiet e100 fan is ideal for ventilation through a wall or for connection to short air duct systems with low pressure loss. The e100 fan is intended for the extraction of clean air free of dust or other contaminants.
Fan Casing
The casing is made of durable, mechanically resistant ABS thermoplastic.
Impeller
The axial impeller is made of high-quality ABS plastic
.
Motor
The e100 fan is equipped with an asynchronous motor with squirrel-cage rotor. It features maintenance-free, permanently lubricated sleeve bearings for the entire service life. The motor includes an integrated thermal overload protection. Maximum operating temperature is 40°C. The protection rating is IPX4.

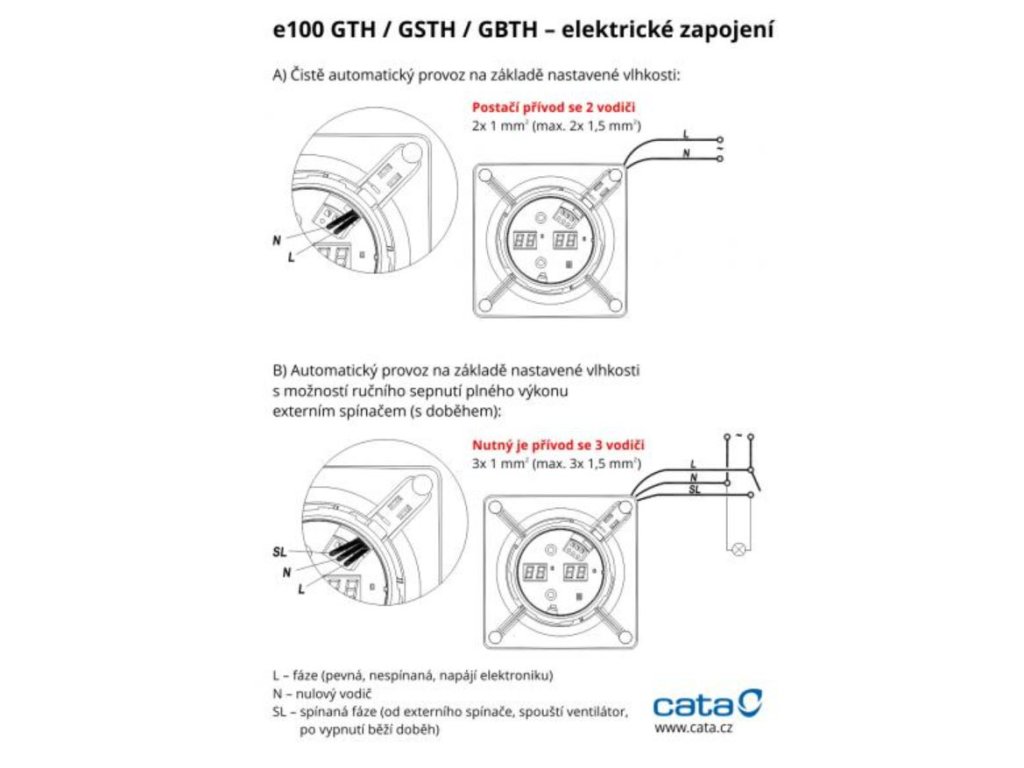

Terminal Block
The fan’s terminal block is accessible after removing the front glass panel and opening the cover.
Airflow Direction
The airflow is directed from the front panel towards the rear exhaust outlet. Reversing the airflow direction is not possible. </>
Installation
The compact e100 fan can be installed on walls or ceilings. Wall plugs and screws are included in the package.
Speed Control
Fan speed can be controlled using electronic or transformer-based voltage regulators.
Noise Level
The fan's noise level is measured at a distance of 2 meters along the suction axis during full operation.
Related products
Additional parameters
| Category: | Cata E - design bathroom fans |
|---|---|
| Warranty: | 2 years |
| Weight: | 2 kg |
| EAN: | 8422248359313 |
| Variant: | Časový doběh, Hygrostat, Trvalý chod |
| Voltage [V]: | 230 |
| Color: | Black |
| Maximum temperature [°C]: | 40 |
| Duct diameter [mm]: | 120 |
| Protection: | IP44 |
| Otáčky [min-1]: | 2400/900 |
| Příkon [W]: | 11/6 |
| Akustický tlak [dB(A)]: | 33/19 |
| Průtok [m3/h]: | 210/140 |
| Max. tlak [Pa]: | 40 |
